RESERVOIR CHOPPER - V-TWIN / WYATT GATLING - PRISM PIRATE 2.2G

Réservoir d'une capacité de 2.2 gallons / 8.30 litres. La Pièce

VT No: 38-0242

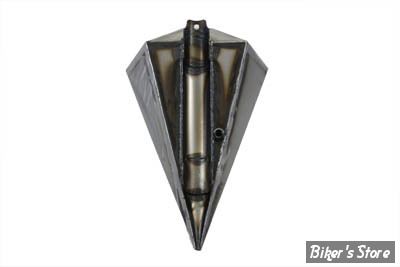

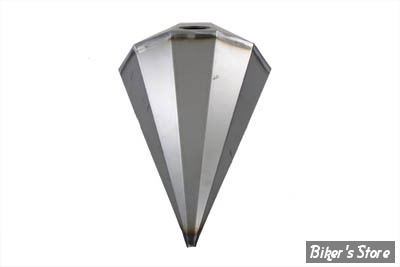

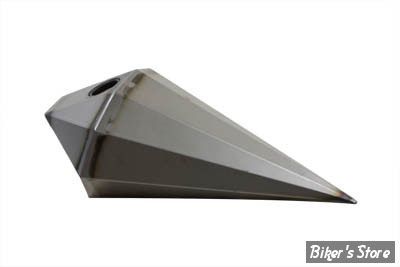

Gas tank has a left side petcock opening, and a fuel capacity of 2.2 gallons. It includes front and rear mount tabs.

This Wyatt Gatling tank features a mini design which allows for full engine view. It is 22" long with a 19-1/2" tunnel length. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks, and prevent corrosion. Check petcock opening, making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.

Fits:

Custom application

UOM: 1 - EA

Measurements

Top Length: 22" Bottom Length: 17" Rear Width: 0.75"

Front Width: 8" Rear Height: 0.5" Front Height: 6.5"

Front Tunnel Height: 1" Rear Tunnel Height: 1" Tunnel Length: 19-1/2"

Tunnel Width: 2"
