ISOLATEUR UNIVERSEL POUR REMORQUE - RIVCO - TWC003

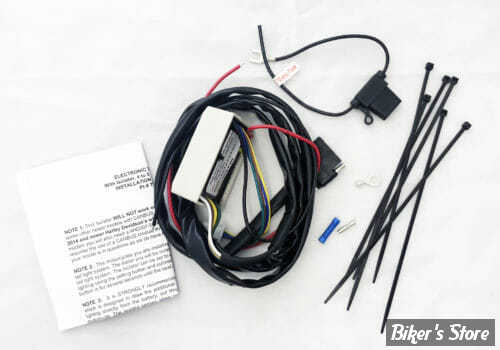

Module isolé universel pour remorque. le Kit
Empêche les dysfonctionnements électriques ou les dommages sur le système d'allumage électronique, d'injection ou d'ABS de la moto et d'autres composants électriques sensibles
L'isolateur utilise le courant directement grâce au câblage et aux fusibles renforcés de la batterie
L'isolateur sent le besoin de puissance vers les feux arrière et les active grâce à de petits câbles branchés au feu arrière de la moto, permettant ainsi aux feux de la moto et de la remorque d'être allumés en pleine intensité
La prise est dotée de câbles sans terminaison de 45" de long dans un faisceau permettant d'installer la prise de remorque de votre choix (prise de remorque vendue séparément)
Les fiches de jonction sont compatibles avec le faisceau de câbles de remorque Rivco et le convertisseur 5 fils à 4 fils de Rivco (vendus séparément)
-
When connecting trailer lighting to a motorcycle using an isolator is required to prevent error codes at the gauges as well as damage to your factory motorcycle electronics and wiring. Also many times it is necessary to convert the motorcycles 4 or 5 wire tail light system to the opposite on the trailer being towed.
RIVCO designed the TWC003 combination isolator and convertor to be plug-n-play with RIVCO sub-harnesses. It features a selector button with corresponding colored LEDs to change the input and output functions. The TWC003 has a 36” wire loom and a “5 flat” trailer plug which also mates with all “4 flat” connectors molded to the wires.
Installing the TWC003 is easy when you follow the included wiring diagrams and instructions. The small 3” x 1” x 1” size of the TWC003 isolator make it easy to mount in an out-of-sight location like under the seat. The TWC003 is a universal isolator; meaning it works on most motorcycles. See what you need for your bike at the application chart below or call us and we can get you the correct parts.
RED LED = Converts a 4 wire from the motorcycle to a 5 wire out to the trailer
GREEN LED = Straight thru i.e. 4 wire from the motorcycle = 4 wire out to trailer or 5 wire from the motorcycle = 5 wire out to the trailer.
YELLOW LED = Converts a 5 wire from the motorcycle to a 4 wire out to trailer
Combination Isolator and 4 to 5 or 5 to 4 wire convertor
Works on most late model motorcycles (see fitment chart)
Protects Can Bus and other sensitive electronics
Eliminates error/failure codes lights
Push button selectable with LED function indicator
Plug and play connectors, no splicing
Clean and compact flat 5 or 4 wire trailer plug molded to wire ends
10 amp fused protection for all tail light circuits
NOTE : This Isolator WILL NOT work on 2018 and newer Honda Gold Wing and some other newer models with CANBUS wiring.
NOTE: WILL NOT function correctly on 2014 and newer Harley Davidson’s when set on the 4 to 5 wire mode. ON these HD models you will also need # HD007-50 4 to 5 wire decoder. On Indian Models it also requires the use of CANBUS module #VCC007-50.
See what you need for your bike:
