ECLATE N - PIECE N° 15 - NOYAU DE GENERATRICE - 6V - OEM 30851-32 - V-TWIN

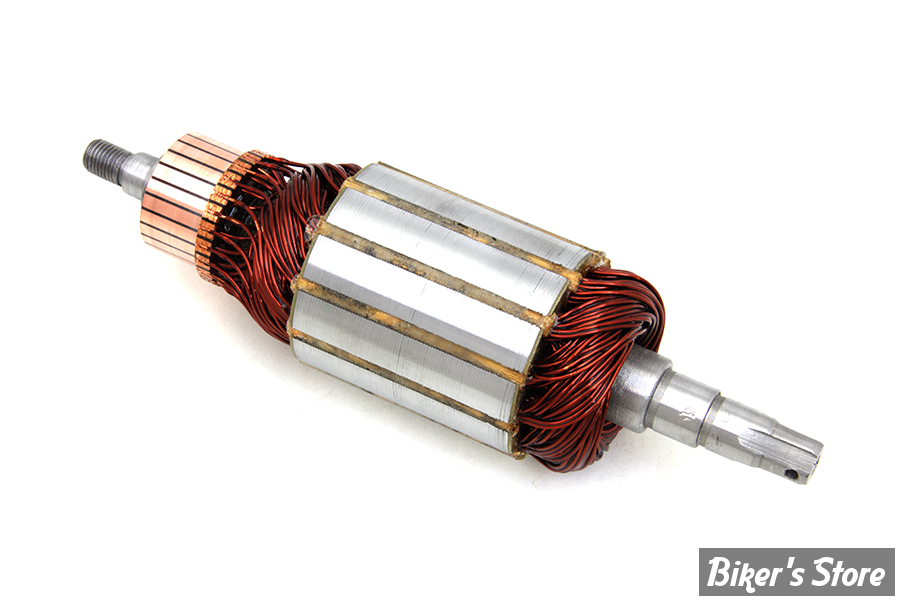

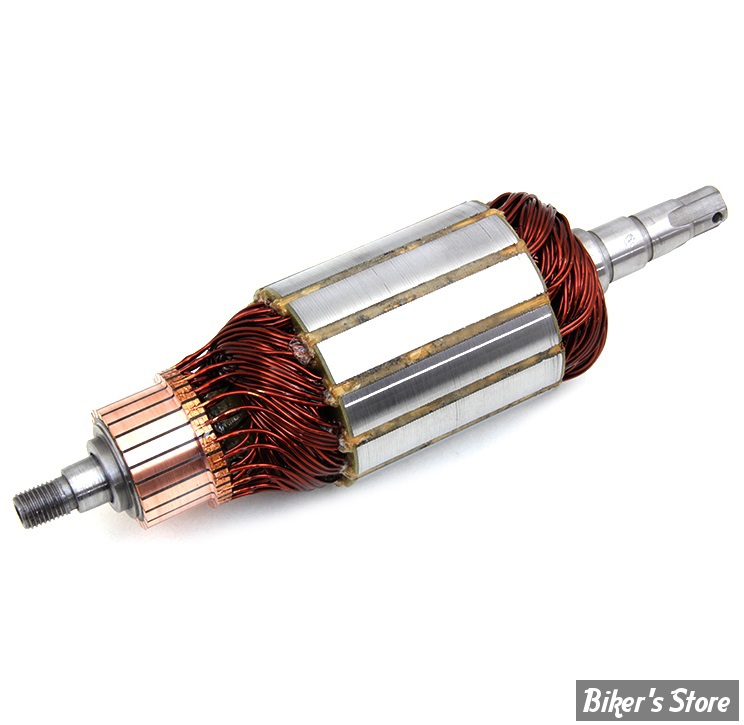

Accel 6V pour BigTwin 32/57, XL,/KH 54/57. Construction de qualité, axe tourné avec précision, bobinage cuivre gros diamêtre, collecteur cuivre longue durée avec segments robustes. Remplace la référence HD30851-32. La pièce

VT No: 32-0268

OEM No: 30851-32

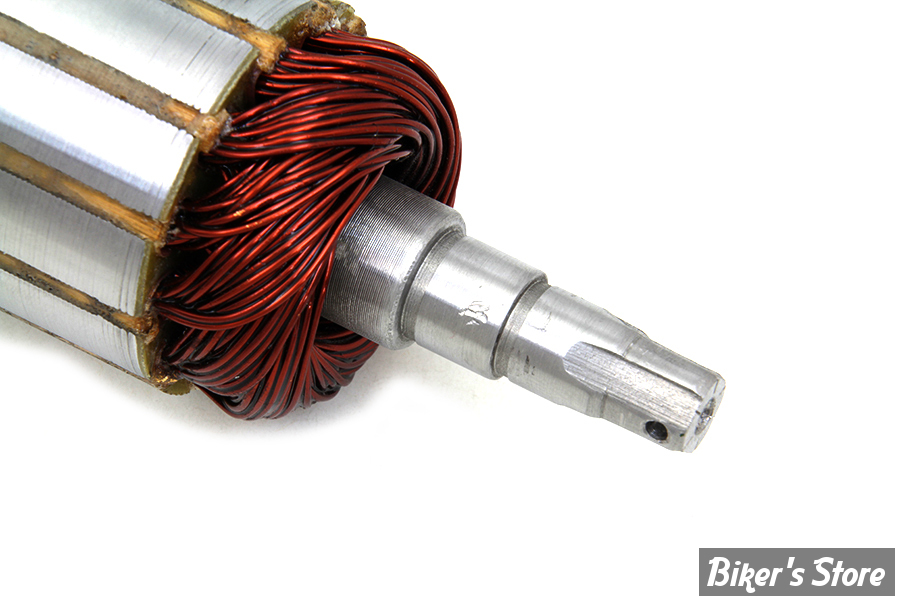

Generator armatures is for 3-brush generators, featuring 24 segments in the commutator, developed by V-Twin with new tooling.

This armature is the later style to accept commutator with the seal. The guage of the wire in the armature winding measures 1mm. The washer thickness is 3/64"-4/64". The next washer surface is 8/64" thick with 48/64" outer diameter. This will eliminate any shimming or spacing during assembly. *NOTE: 32E 6 bolt armature diameter range is 31.5mm - 33.2mm, Dixie 31.5mm OEM per original armature in new generator.

Fits:

W 1936-1952

EL 1936-1952

FL 1941-1957

Measurements

Diameter Commutator: 31.5mm
