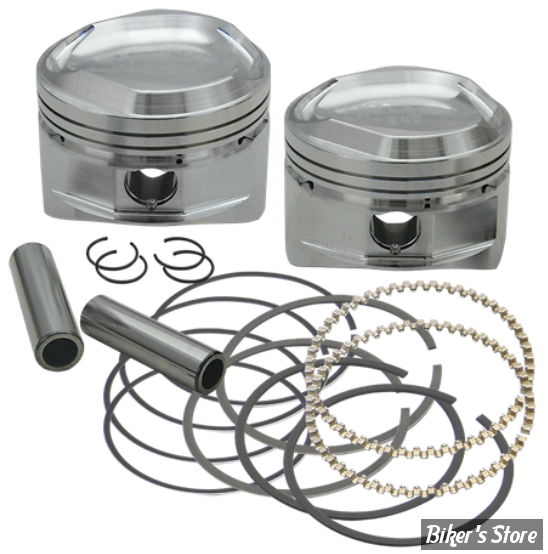

ECLATE G - PIECE N° 20 - KIT PISTONS - ALESAGE : 3 5/8" - S&S - BIGTWIN 84/99 - 3 5/8'' Bore Piston Kits for 88'' / 93" / 96'' Super Stock® Heads - COTE : +0.030 - 92-1063

Pour Culasses S&S - Piston forgé par S&S, BigTwin Evolution de 1984 à 1999 à gros alésage 3-5/8" (88", 93", 98") avec CULASSES S&S SuperStock et vilebrequin de 4-1/4" (std), 4-1/2" et 4-5/8" (NU) . Le Kit

Ces pistons forgés sont conçus pour être utilisés dans les kits de réglage à chaud S&S ® big bore pour les moteurs big twin HD ® Evolution ® et les moteurs S&S ® 3-5/8" avec culasses S&S ® Super Stock ® et 4-1/ Moteurs à course de 4-½, 4-1/2" et 4-5/8" avec volants d'inertie de diamètre d'origine (8-1/2"). Alésage 3-5/8", taille standard.

S&S, 3-5/8" REPL. EVO SUPERSTOCK PISTON KIT

Replacement recessed dome pistons for 3-5/8" Big Bore applications. Will fit 84-99 Evolution Big Twin models with S&S SuperStock heads only and 3-5/8" bore cylinders in combination with 4-1/4" (5.375" cylinders, 9.4:1CR), 4-1/2" (5.500" cylinders, 9.8:1CR) and 4-5/8" (5.565" cylinders, 10.1:1CR) strokes. S&S tolerance recommendations: Close fit .0015" to .002". Loose fit: .003" to .004". All pistons include wrist pins, wrist pin clips and piston rings. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required. The rider must follow standard break-in and riding procedures for overhauled engines.

Fits: > 84-99 3-5/8" big bore Evo B.T. with S&S SuperStock heads and 4-1/4" (std), 4-1/2" and 4-5/8" stroke flywheels (NU)
