ECLATE G - PIECE N° 20 - BIGTWIN SHOVELHEAD 79/84 80" - S&S - ALESAGE : 3 1/2" - COMPRESSION : 8:1 - COTE : + 0.000 - 106-5511

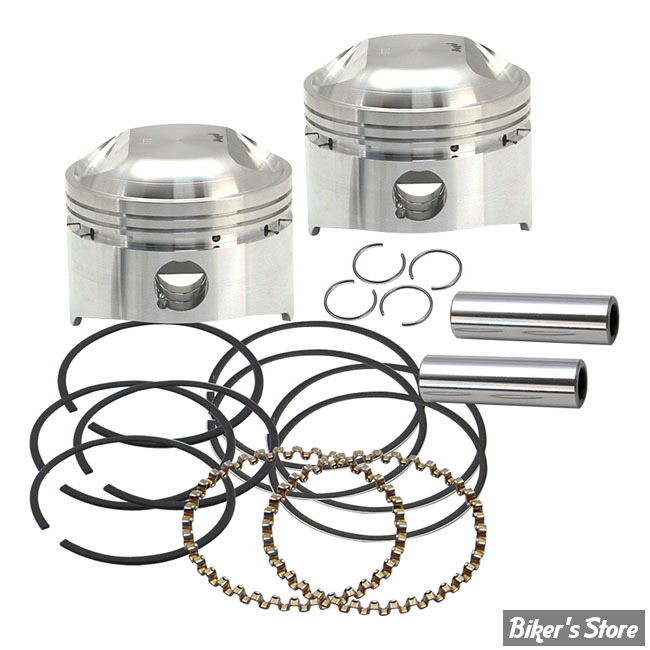

Pour Shovelhead 80" de 1979 à 1984. Kit complet avec pistons, clips, segments et axes de piston. Le Kit

S&S, 3-1/2" BORE 8:1CR PISTON KIT

Standard 8:1 compression ratio. Used as stock replacement for 1340 (80") Shovelhead models, 3-1/2" bore with stock 4-1/4" stroke. These S&S forged pistons come in an advanced alloy and skirt profiles, resulting in a quiet engine and long life, previously only achievable with cast pistons. This is an excellent choice to overhaul your stock 1340cc Shovel. Note: S&S piston fit recommendations: Close fit .0030" to .0035", loose fit .004" to .005". Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required. The rider must follow standard break-in and riding procedures for overhauled engines.

Fits: > 79-84 1340cc/80" Shovel (NU)
