> ECLATE A - PIECE N° 01 - RESERVOIR D HUILE - REPLICA - BIGTWIN 1936/1957 - KIT - TT BOBBER - CHROME

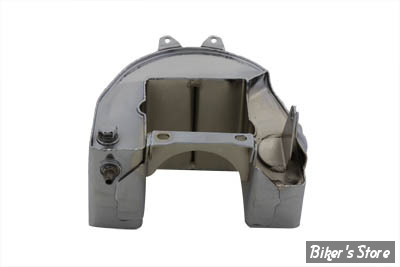

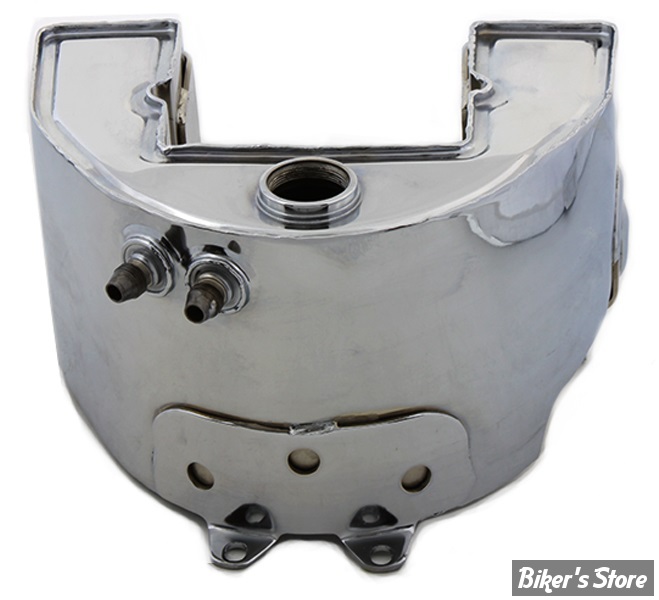

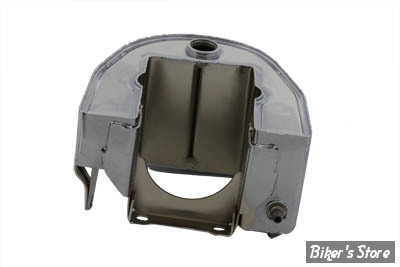

ECLATE A - PIECE N° 01 - RESERVOIR D HUILE - REPLICA - BIGTWIN 1936/1957 - KIT - TT BOBBER - CHROME
Le réservoir d'huile TT Bobber est de 1 5/16" plus court afin de permettre une position surélevée pour l'alignement de la chaîne. Pour FL de 1941 à 1957, EL de 1936 à 1952. La Pièce
www.vtwinmfg.com/Instructions/40/40-0488.pdf
Replica chrome TT Bobber oil tank is 1-5/16" shorter in order to accommodate a raised position for chain alignment.
NOTE: Purpose of tank is to raise the transmission and clutch pak for TT racing or hillclimbing for greater ground clearance. raise transmission mount plate with 1-5/16" spacers and mount as stock. Battery compartment is shorter in this tank so a smaller battery is required. Chain guard will be in a raised position so modifications must be made to the front mount tab. Most TT bikes did not use a chain guard in the early racing era. Use (2) 3"x3/8" SAE bolts and (2) 2-1/2"x3/8" SAE bolts to mount transmission plate. Oil tank fromt mount must be removed and rewelded in place 1.25" upward. Use a spacer, 5 required, on the 5th mount bolt (1) 2"x2/8" NC. *NOTE: Tank is not designed for electric start installations. *NOTE: Dipstick must be a stock one and shortened in order to use with this tank. The raising of the trans
More Information
FITS
Custom application for Rigid frame
FL 1941-1957
EL 1936-1952
Measurements
Height Front: 5-7/8" Height Rear: 5" Depth: 8"
Finish Chrome
Manufacturer Wyatt Gatling
Origin Imported
Style Wrap Around
2020 Catalog Pages 630
Tech Note
Suggested to use #8115-1, #8114-1, or #9504-1 timing plugs.
Suggested to use with #37-1018 Black Spacer Set 3/8" X 1" X 1-5/16"
Suggested to use with #53-0520 Black H-3 6V Battery
Suggested to use with #53-0549 Mini 12V 6 Amp AGM Battery
Suggested to use with #53-0571 12V Sealed Battery
Suggested to use with #31-0544, Parkerized Oil Tank to Fender Mount Bracket
Other Notes
Depth of Battery: 5" Width: 10" Battery Width: 4-3/4"
