ECLATE A - PIECE N° 01 - RESERVOIR D HUILE - BIGTWIN 36/57 - OEM 62504-38 - BOUCHON CENTRAL - ACIER BRUT

Pour UL de 1938 à 1947, EL de 1936 à 1940, FL de 1941 à 1957. La Pièc

www.vtwinmfg.com/Instructions/40/40-0424.pdf

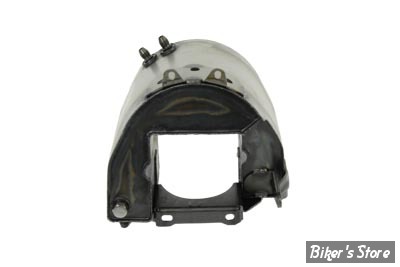

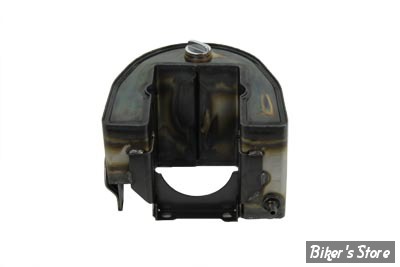

Replica, raw oil tank features wrap around construction, including seam-welded edges which show weld marks as on original tanks.

Tank is equipped with a screw in dipstick, but does not have battery rod tabs. *NOTE: The battery compartment dimensions are 5" wide x 4-1/2" long x 7" tall.

More Information

FITS

UL 1938-1947

EL 1936-1940

FL 1941-1957

UOM 1 - EA

Measurements

Height Front: 7" Height Rear: 6-1/2" Depth: 8-1/4"

Finish Black

Manufacturer Wyatt Gatling

Origin Imported

Style Wrap Around

2020 Catalog Pages 740

Tech Note

Suggested to use #8115-1 or #8114-1 Stock Type Timing Plug.

Suggested to use with #9601-10 Inner Primary Cover and ChainMount Kit.

Suggested to use with #9504-1 Parkerized Timing and Oil TankPlug.

Suggested to use with #30-0544 Wyatt Gatling LAF Exhaust Header Set.

Suggested to use with #31-0910 Rear Fender Mount U-Clamps Raw.

Suggested to use with #9667-8 Parkerized Oil Tank Mounting Kit.

Suggested to use with #42-0877 Replica Oil Tank Plate.

Other Notes

Depth of Battery: 5-1/4" Width: 10" Battery Width: 4-3/4"
